After two years of intensive research and development, we are pleased to introduce our new range of Monitoring control solutions. RAM System Series, including 3 new products that will satisfy the needs of any studio size.

We’ve combined our state-of-the-art analog circuitry for a superior transparency and ultra-low noise distortion with modern features like Bluetooth connection, to deliver audiophile-quality sound and feature sets tailored for project studios, commercial recording facilities, and post-production houses who deliver in 5.1 surround. The top-of-the-line RAM System 5000 is designed for studios that require extensive, mastering-grade stereo and 5.1 monitoring functionality.

The three units are fitted with 64-step, gold-plated relay ladder attenuation for master level control — a feature usually found only on high-end large-format consoles. Our Bluetooth connectivity provides convenient wireless input for mobile devices. And with its classic RAF-gray cosmetics and prominent red Marconi knob, your RAM system will add a touch of class to your control room.

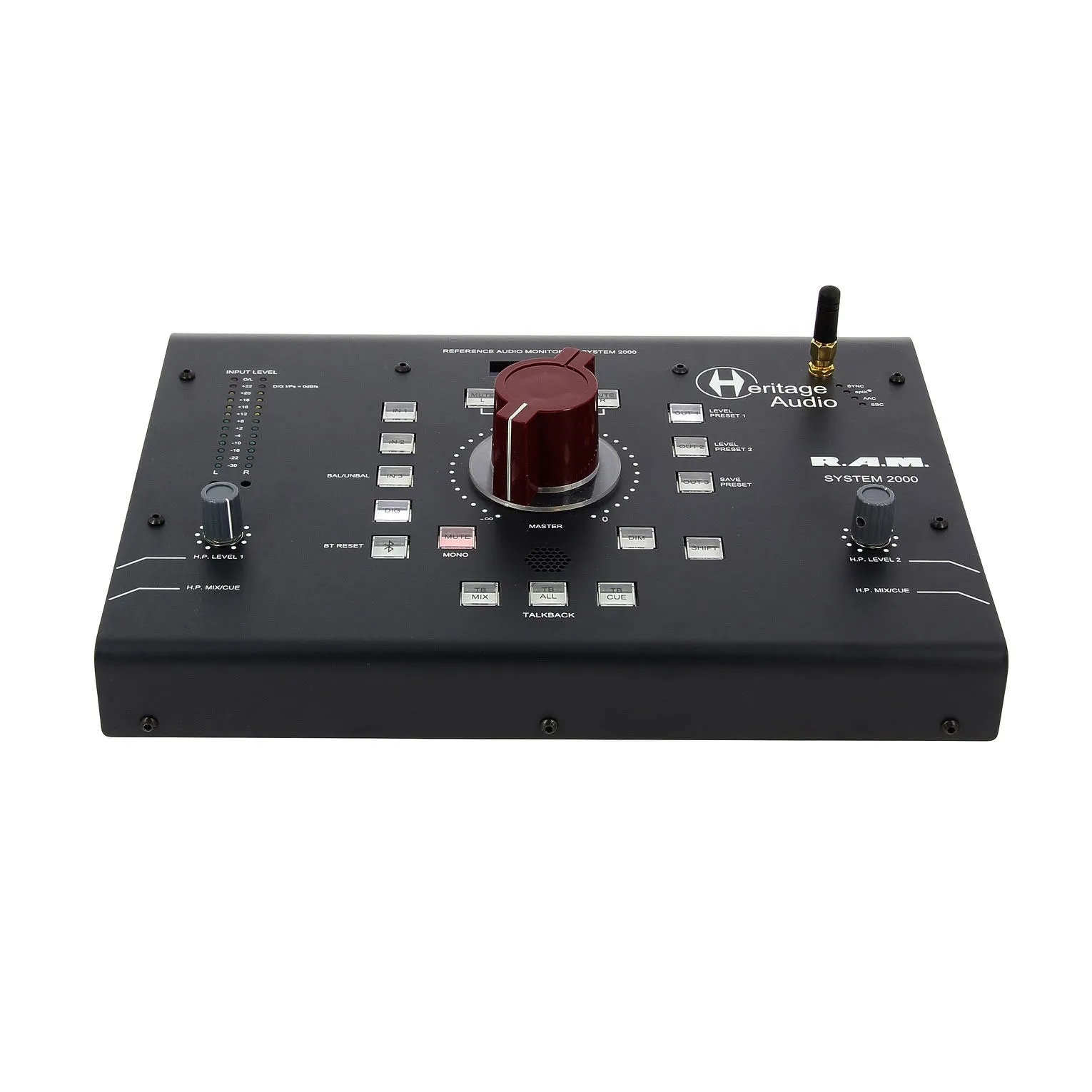

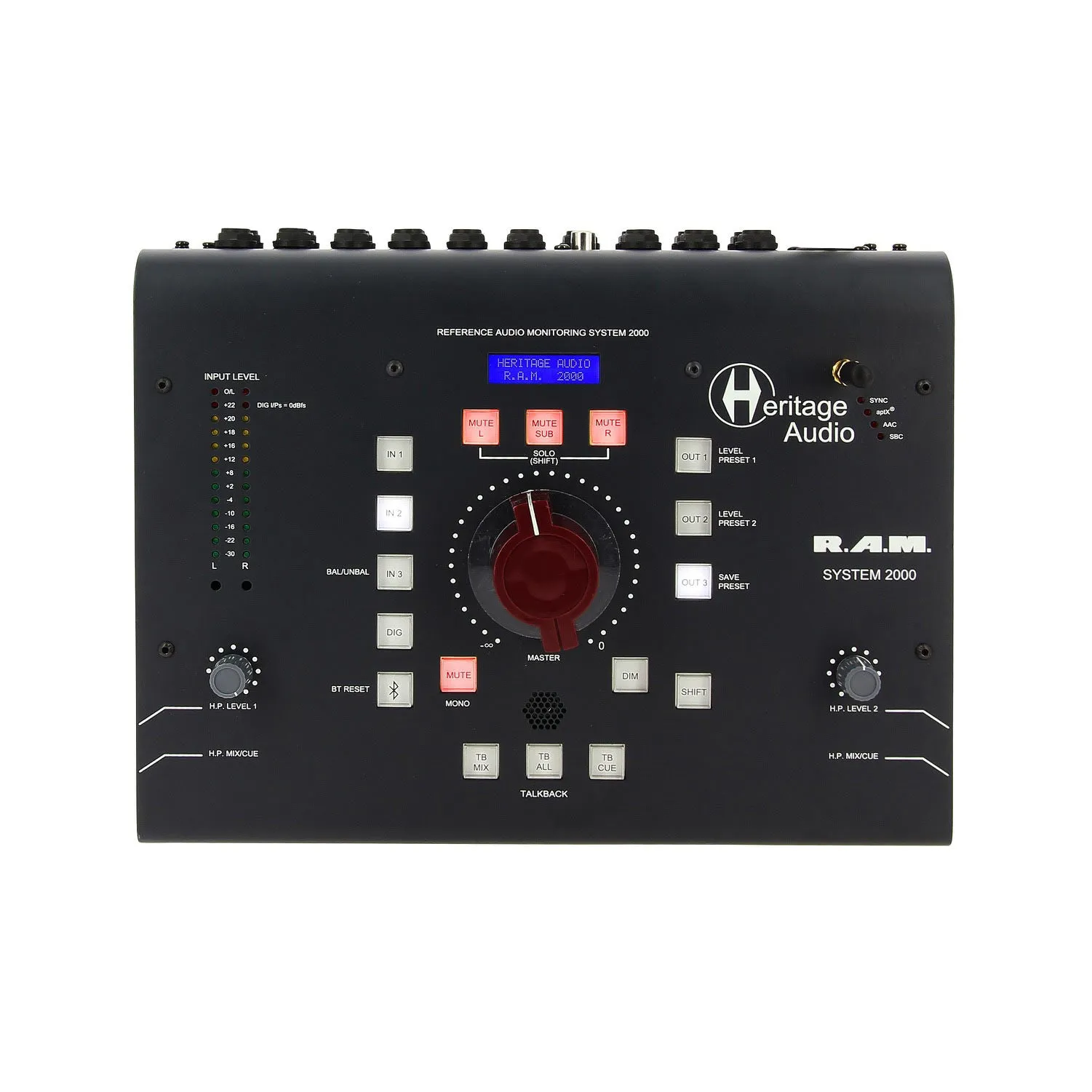

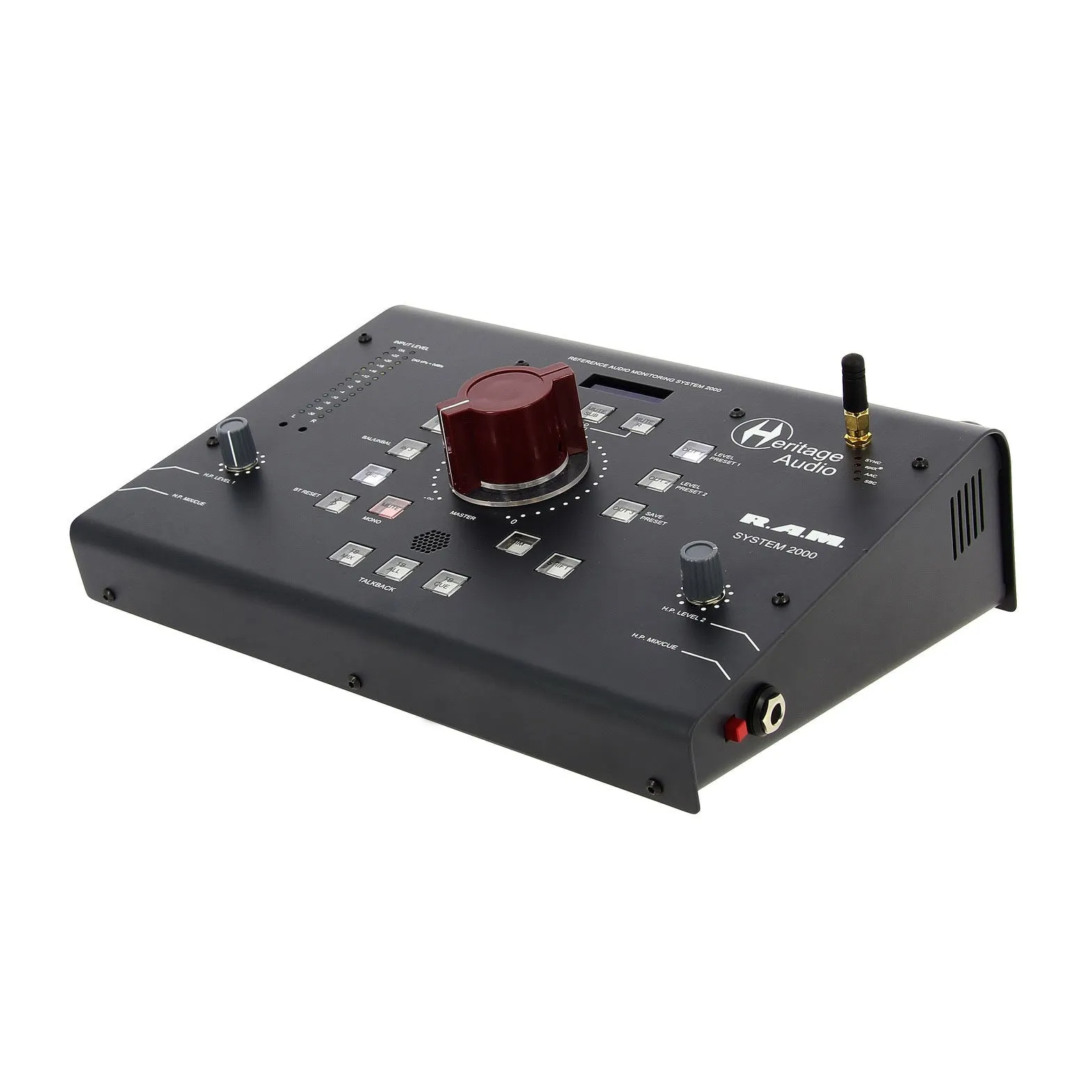

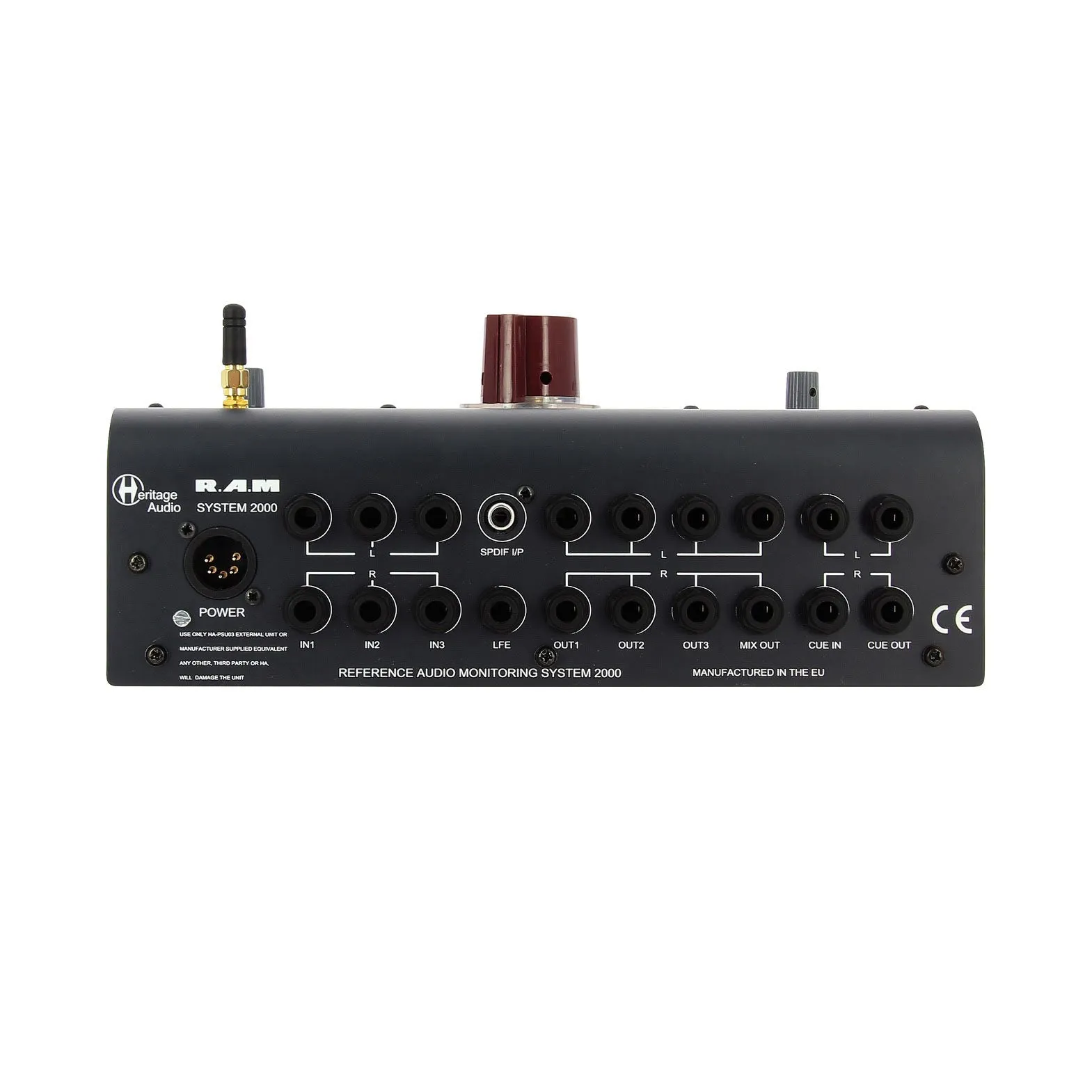

The RAM System 2000 features generous I/O, with three pairs of 4dBu balanced analog inputs and three stereo outputs, an independent pre-fader MIX OUT, independent stereo CUE I/O, a S/PDIF coax input, and pro-audio-quality Bluetooth input for easy mobile device integration. The 2000’s two audiophile-grade diamond-buffer-based headphone amplifiers are capable of driving any headphones without noise or coloration. For easy recall of common settings, two user-assignable preset levels are provided. For communicating with talent, there’s a built-in Talkback with console-style management. Lastly, Heritage Audio equipped the RAM System 2000 with an independent Subwoofer output that lets you effortlessly share your sub between different speaker pairs.

Specifications

• Desktop-format monitor controller with classic looks
• Designed for the studio that needs enhanced, mastering-grade stereo monitoring capabilities
• All functions on high-quality illuminated engraved buttons
• 64-step relay ladder attenuation for master level control in 1dB steps
• 3 pairs of 4dBu balanced analog inputs (input 3 is configurable for -10dBu unbalanced signals)
• Independent stereo CUE I/O for cue-mix distribution to artists
• S/PDIF coax input with Burr-Brown 24-bit/96kHz D/A conversion
• Pro-audio-quality Bluetooth input for easy mobile device integration
• 3 stereo outputs
• Independent MIX output (pre-fader; follows Input)
• Independent Subwoofer output facilitates sub sharing between different speaker pairs
• DIM function; MUTE/SOLO for individual speakers
• 2 user-assignable preset levels for easy recall of common settings
• Built-in Talkback with console-style management, including Talkback to Cue, Talkback to Mix, and Talkback to All
• 2 high-level, ultra-high-current, audiophile-grade diamond-buffer-based headphone amplifiers, capable of driving any hi- or lo-Z headphones without coloration or noise
• Headphone source selectable between mix and cue signals
• State-of-the-art analog circuitry for superior transparency and ultra-low noise and distortion
• All gold-plated relay-based switching for every function, including inputs and outputs
