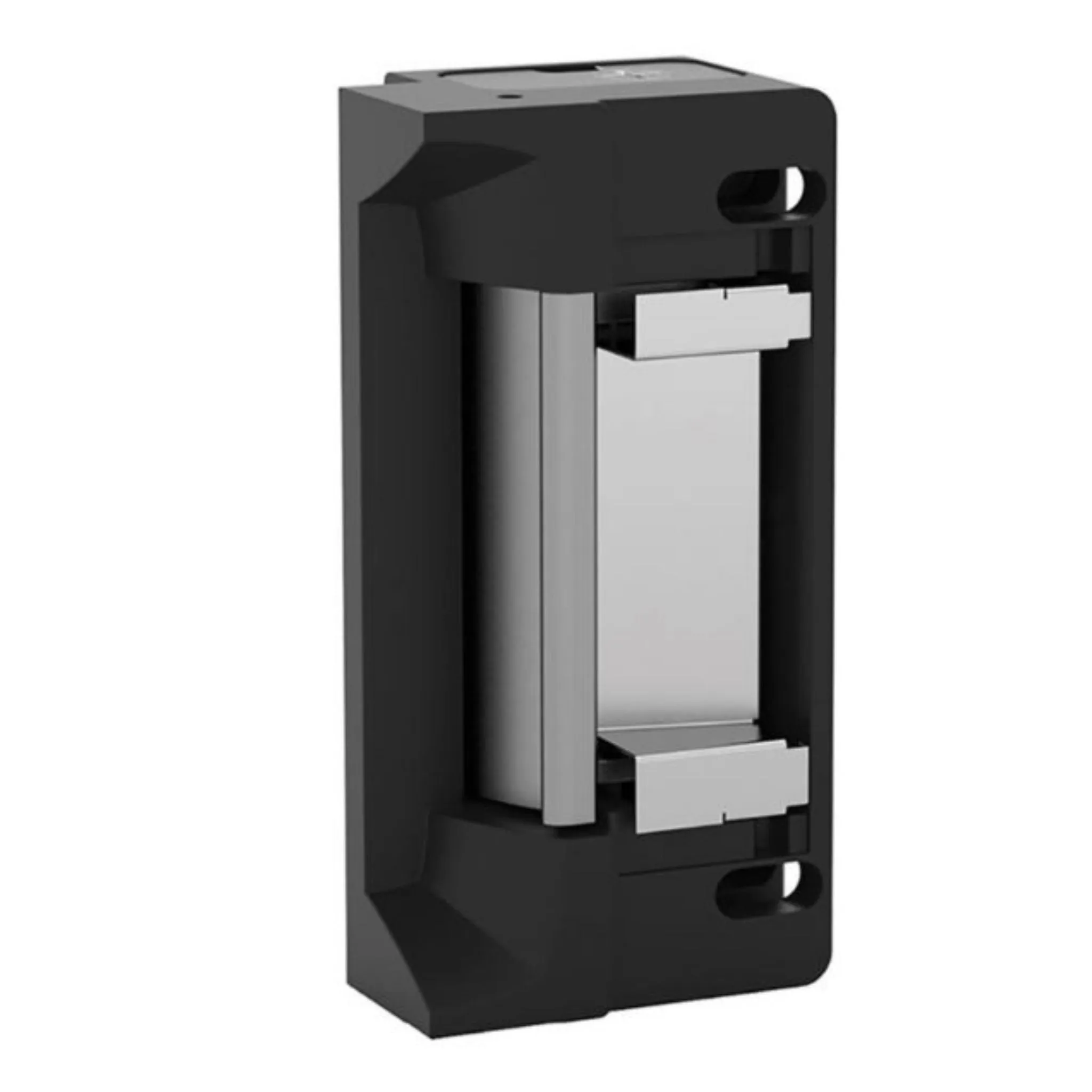

HES 5200-630-LBSM Electric Strike: The 5200 works with cylindrical locksets up to 3/4" throw latchbolt.
The HES 5200 Electric Strike features an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 3/4" throw.
The Grade 1, Low-Profile Solution with Horizontal Adjustability!
Features
- Latchbolt Strike Monitor - Monitors the locking mechanism in the electric strike is locked and the door will not open
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 1,00,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector
- Trim enhancer included
- Frame Application: Metal & Wood
- Finish: Satin Stainless Steel (630) finish
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitble for outdoor use
- UL 294 listed
- RoHS compliant
- Dual voltage 12/24 VDC/VAC
- 240 mA at 12 VDC/120 mA at 24 VDC
- PoE friendly
