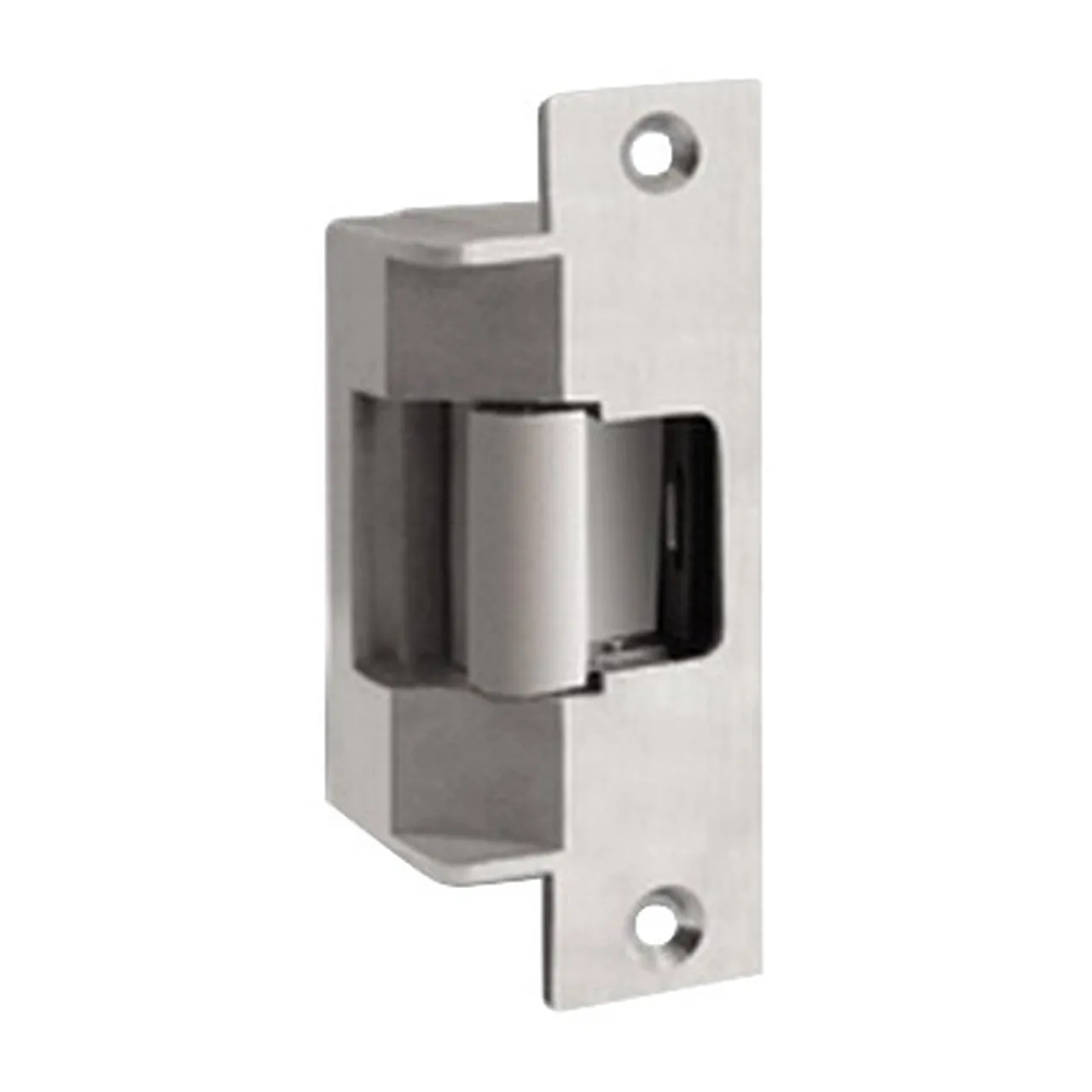

HES 7501-630-LBM Electric Strike: The 7501 works with cylindrical locksets up to a 3/4" throw latchbolt
The HES 7501 Electric Strike is ideal for fire rated applications with preload conditions caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire rated latchbolts up to 3/4" throw.
The Grade 1, Fire-Rated, Preload Solution!
Features
- Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Dual voltage 12 or 24 VDC/VAC
- Endurance 500,000 cycles
- Field selectable fail safe/fail secure
- Accommodates pre-load (fail secure only)
- Keeper shims for horizontal adjustment
- Non-handed
- Internally mounted solenoid
- Strike body depth 1-11/16"
- Plug-in connector
- Trim enhancer
- Frame Application: Metal
- Finish: Satin Stainless Steel (630) finish
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed
- UL 10C fire rated, 3-hour (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- UL 294 listed
- Dual voltage 12/24 VDC
- 450 mA at 12 VDC/250 mA at 24 VDC
- PoE friendly
