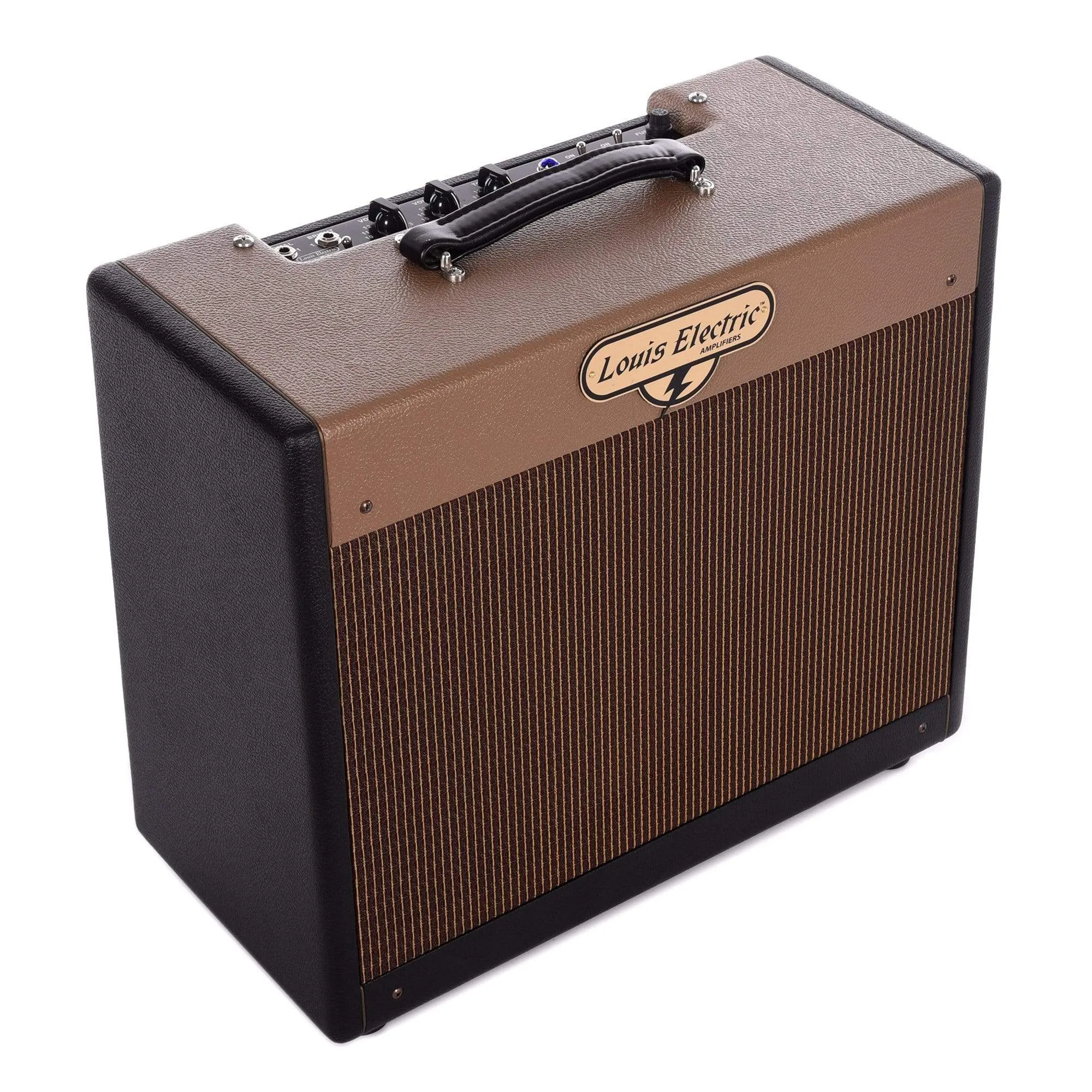

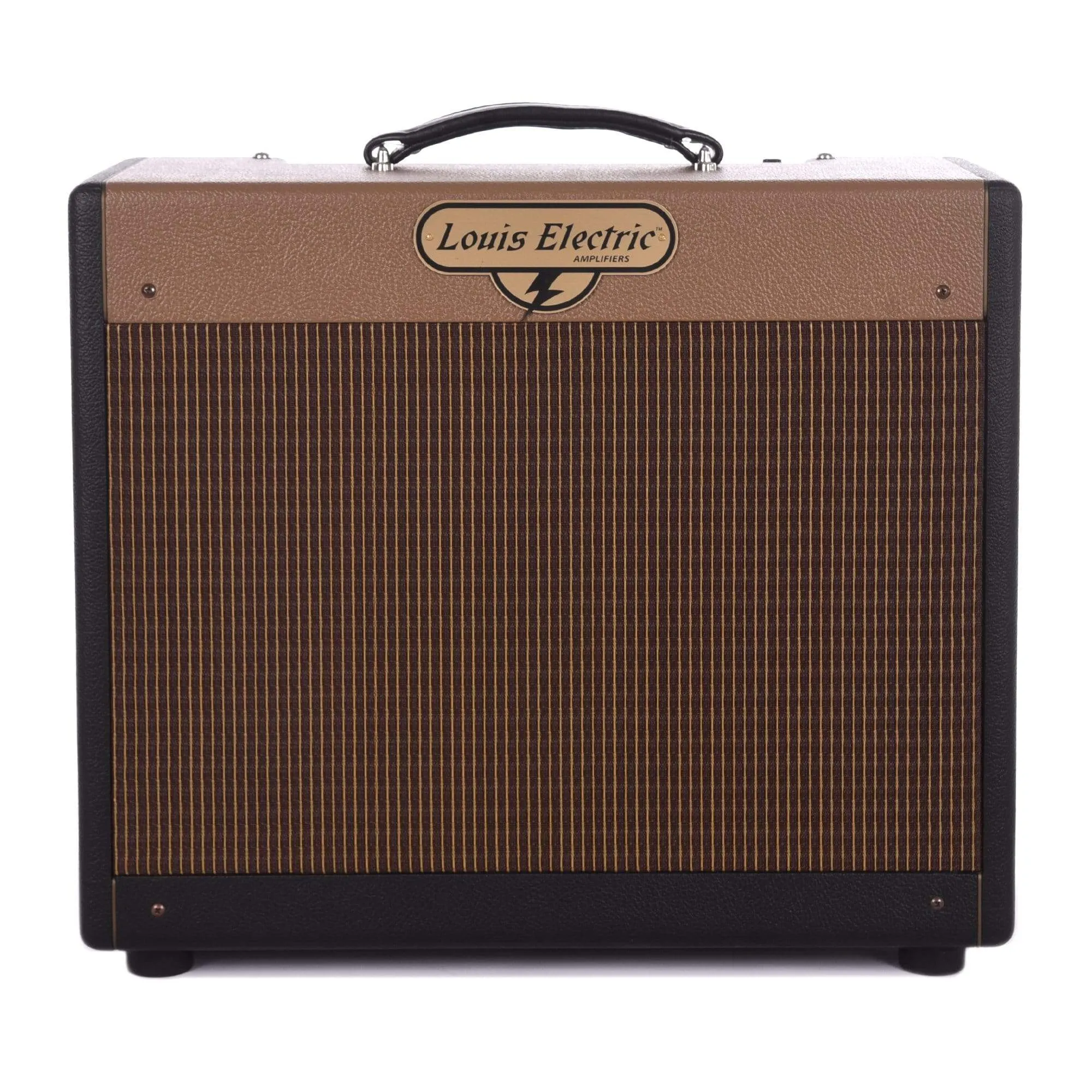

The Buster is based on a 5E3 tweed Deluxe. As you would expect, it covers the sparkling highs and smooth midrange, and has a solid low end that never loses its poise. The Buster has astonishing headroom and plays as a full-sized single 12" tube amp with 35-40 watts.
The Buster features a custom transformer, fixed bias system, Jupiter 12LC speaker, 6V6/6L6 tubes, one 12AT7 phase inverter tube, one 12AX7 preamp input tube and 3 input jacks. The amp has two channels - Bright and Normal. A switch has also been added to provide the player with increased gain. The channels can be bridged for maximum tonal sculpting. The amp provides two volume controls and one tone control. An additional feature with the 6L6 configuration is a 4k/8k option. This allows the player to simply switch the load to provide a cleaner or more distorted sound. The 4k option provides cleaner tones, while the 8k will lower the wattage and provide quicker mid-range break up.Despite its size and relatively low price, the Buster has all the quality components and design work of any Louis Electric amplifier
The Louis Electric Buster is designed to provide the classic 6V6/6L6 sound with a relatively low, useable 18W 6V6 output or 28W 6L6 output. From quiet practice at home, to rehearsal to gigs at small to medium venues -- grab it and go because the Buster does it all.
- Three input with a gain switch
- Eyelet Terminal board construction
- Hand Selected caps and resistors
- Custom designed hand built transformers
- Belton tube sockets
- Switchcraft and Carling input jacks and switches
- High quality machine grade fasteners
- Moisture free circuit board
Classification: AB1, fixed bias
Power Output: 6V6-22W, 6L6-30W
Speaker: Jupiter 12LC
Speaker Load: 8 ohms

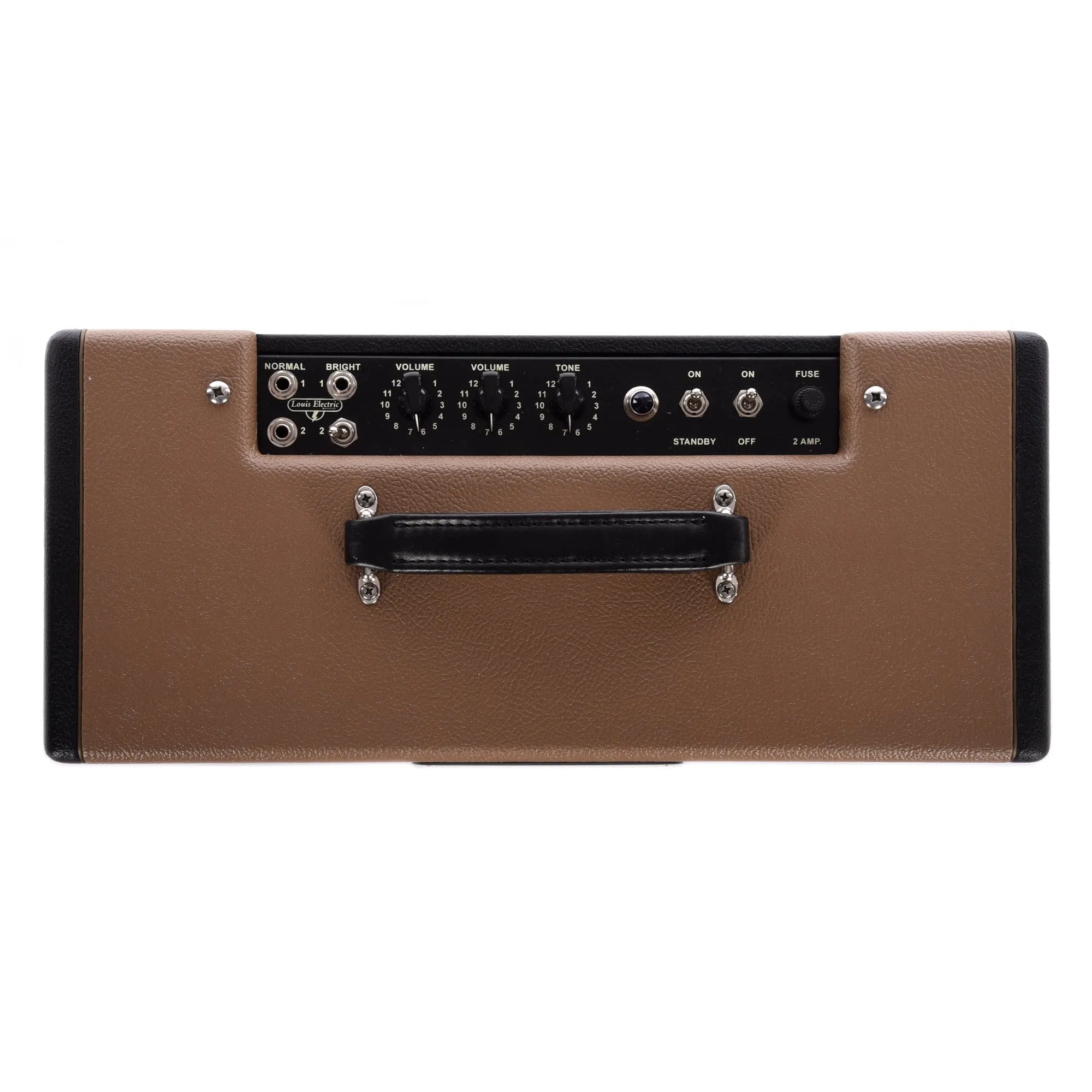

Controls: 2 volume, 1 tone
Pre Amp Tubes: 1-12AX7 input, 1-12AT7 phase inverter
Output Tubes: 2-6V6/6L6
Rectifier: 1-5AR4
Height: 16"
Width: 20"
Weight: 35 lbs
