DESCRIPTION
SPECIFICATIONS
- Two-way bi-amplified analog amp powered speaker system
- DSP I/O is at 48 kHz and 24 bits, with low-jitter, professional grade components
- Fan cooled for maximum reliability
- Peavey Exclusive Quadratic Throat Waveguide™ technology, 100 by 50 degree coverage
- DSP processing is 64 bit double-precision

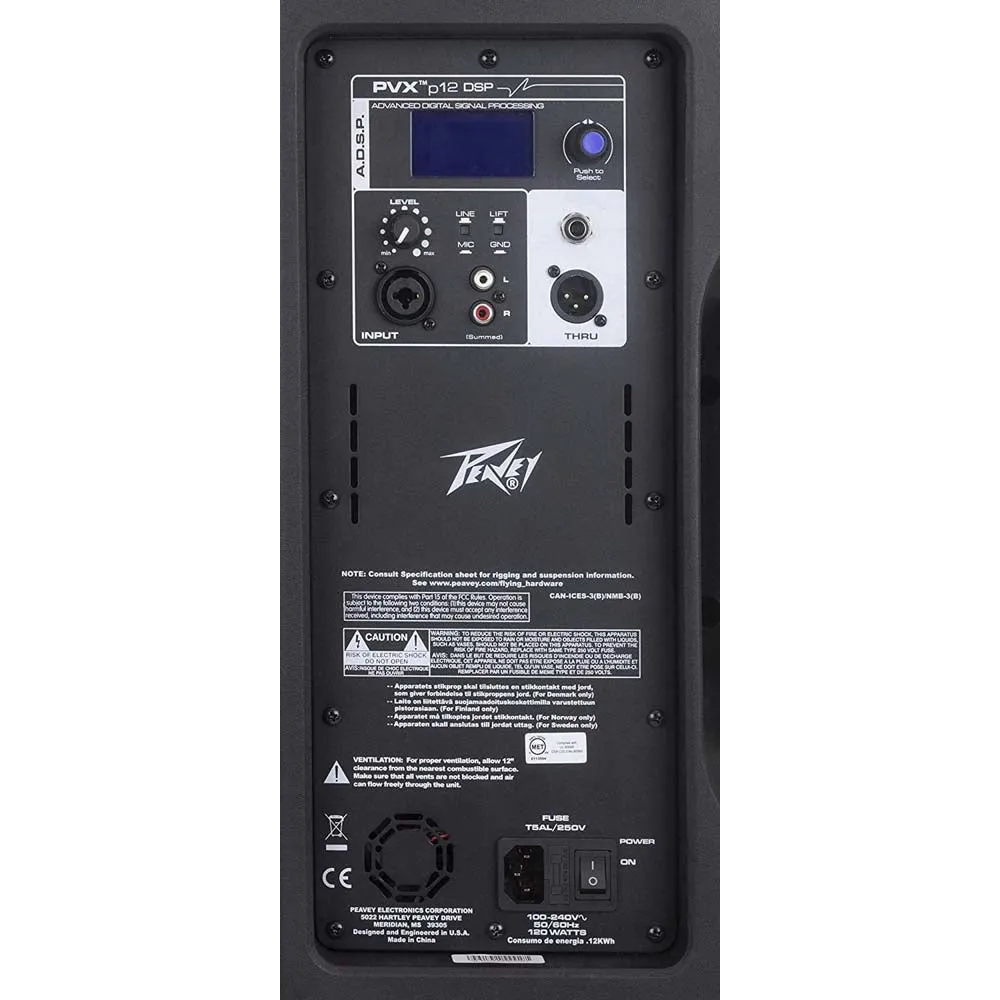

- Input is via a combo female XLR and 1/4" TRS phone jack with balanced input
- A Mic/Line switch provides for two different gain settings
- Thru output is via a male XLR jack and 1/4" TRS phone jack
- Multiple Factory Preset EQ settings
- Rugged plastic injection-molded trapezoidal enclosure
- 630 watts peak dynamic woofer power, 200 watts peak dynamic tweeter power

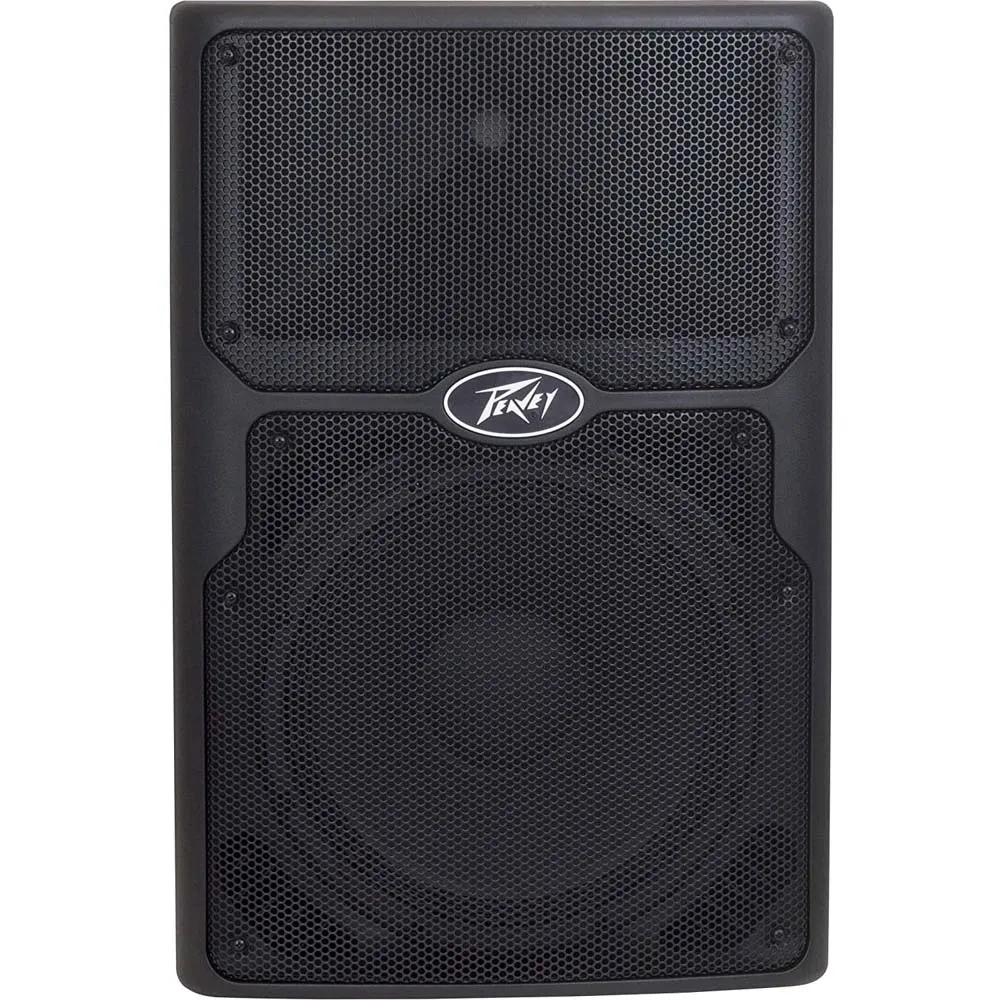

- Full-coverage perforated steel grille, with powder coat finish
- RX™ 14 compression driver, with 1.4 inch titanium diaphragm

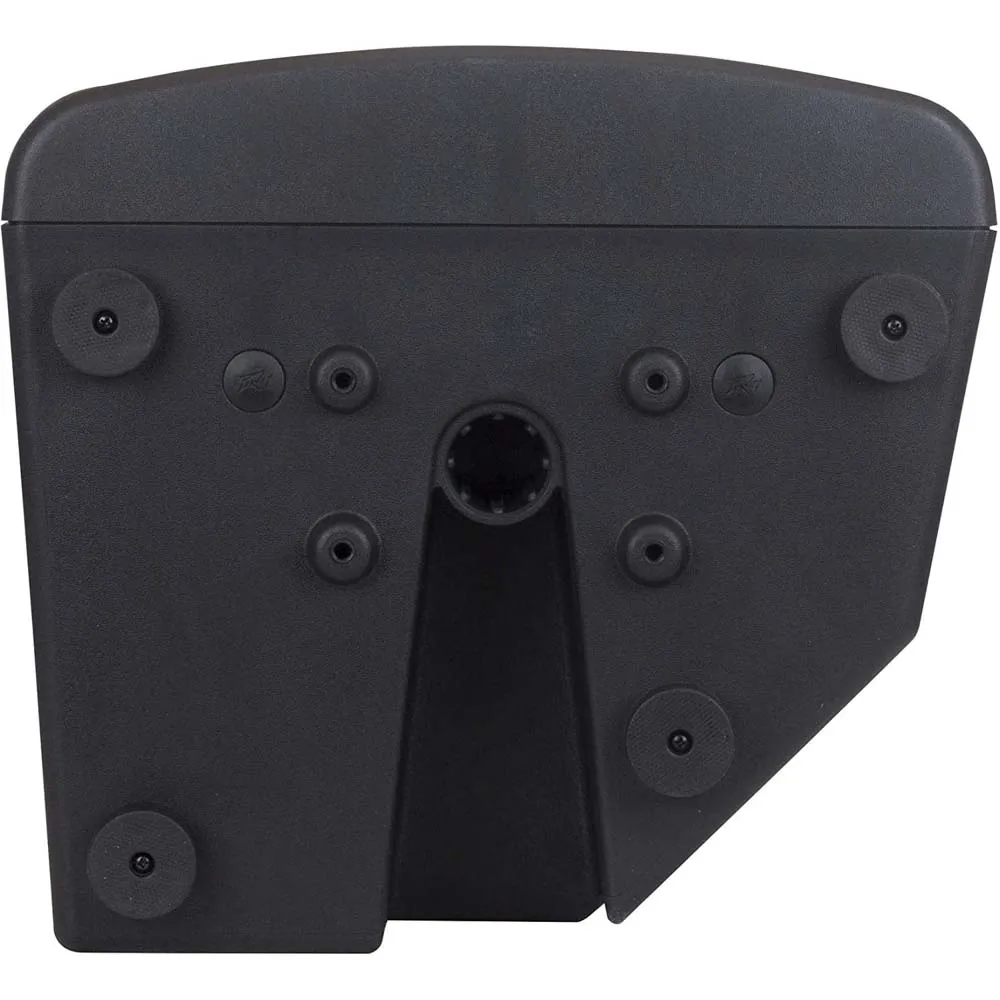

- Pole mount molded-in for 1 3/8" diameter poles
- 12" heavy-duty woofer with a 2-3/8" voice coil & 50 oz. magnet

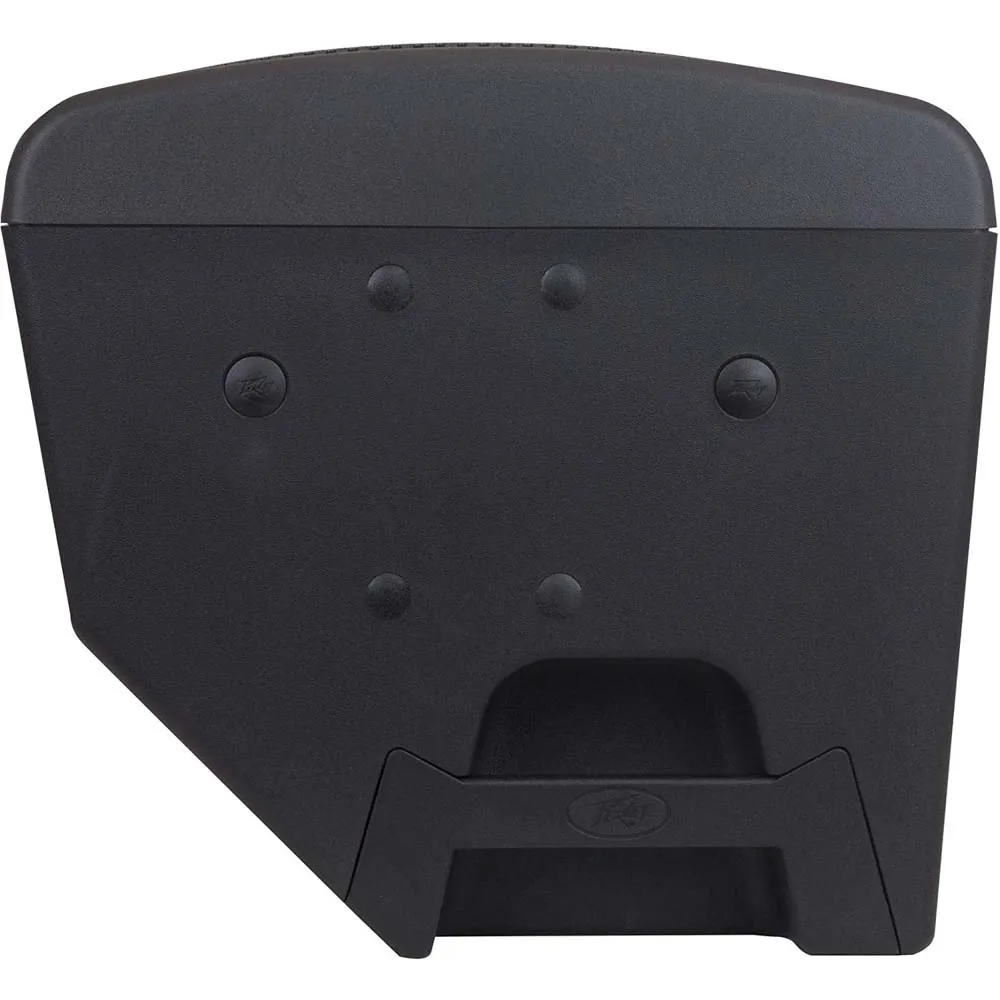

- Top, bottom and right side flying point inserts
- Asymmetrical horn aims the sound down 10 degrees, at the audience, not over their heads
- Weight Unpacked: 42.00 lb(19.051 kg)
- Weight Packed: 48.00 lb(21.772 kg)
- Width Packed: 20"(50.8 cm)
- Height Packed: 26.75"(67.945 cm)
- Depth Packed: 18.25"(46.355 cm)
