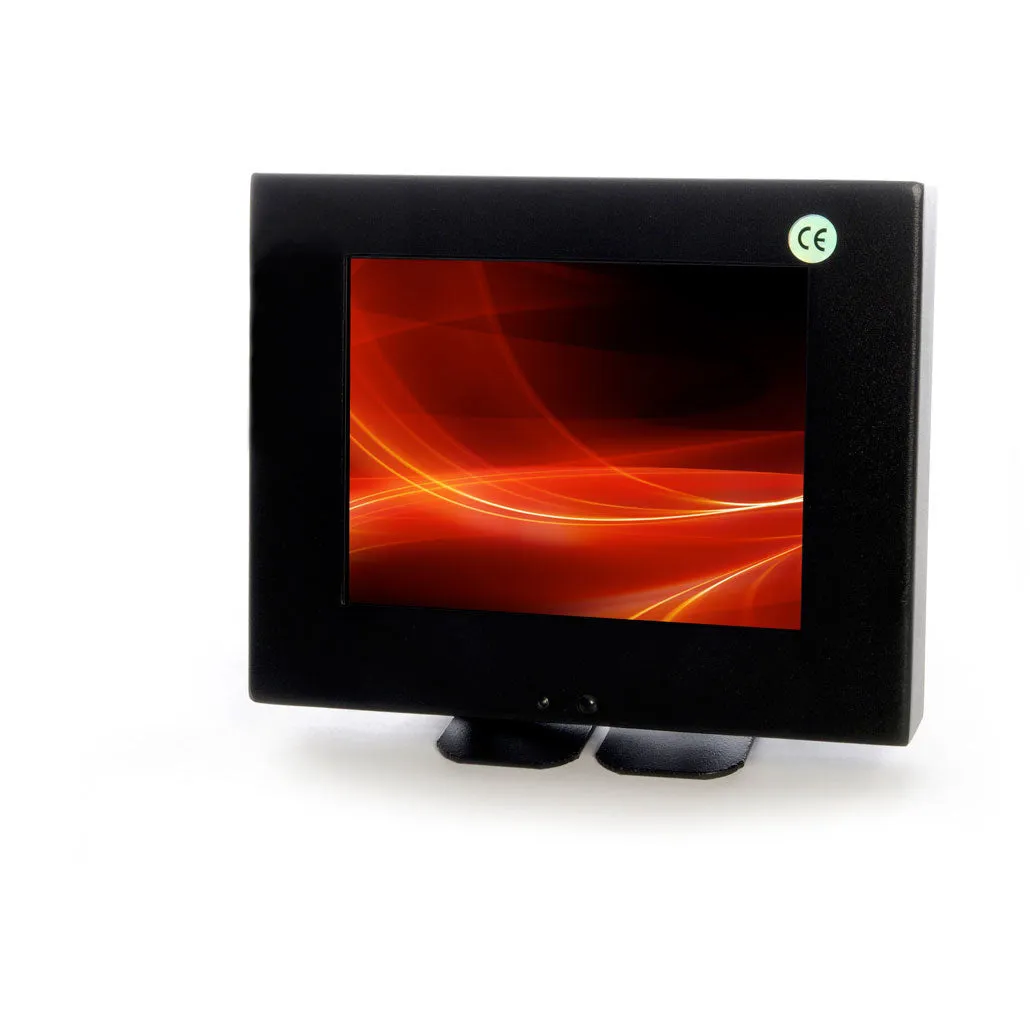

| Panel Type | 8” (4:3) LED Monitor With Glass Front |
| Case Type | Metal |
| Maximum Resolution | 800 (H) x 600 (V) |
| Active Display Area | 162.0 x 121.5 (V) m m |
| Pixel Pitch | 0.675 (H) x 0.2025 (V) mm |
| Bezel Thickness | 22mm |
| Contrast Ratio | 500 : 1 Ratio |
| Brightness | 250 cd/ m² |
| Response Time | 10ms – 15ms |
| Viewing Angle | U/D: 50° / 70°, L/R: 70° / 70° |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatible Frequency | 30-80KHz(H) / 50-75Hz(V) Max. 800 x 600 |
| Adjustable Colour Temperature | 9300K / 6500K / 5800K / User |
| Video Compatiblity | Multi-Standard for NTSC / PAL |
| Aspect Ratio | 4 : 3 Ratio |
| VGA Auto Frequency correction | Yes |
| Number of Speakers | No |
| Sound Demodulation | N/A |
| Mute | N/A |
| Work Humidity | 20 % – 70 % |
| Work Temperature | -10 to 50 °C |
| Volume /- Power On/Off | Power ON/OFF Only |
IN/OUT INTERFACE
| Video Interface | VGA In BNC In x 2 |
| Audio Interface | None |
| Power Interface | DC In x 1 |
| Termination | 75 Ohms (Automatic termination) |
| Safety & EMC Certification | ROHS-2, CE, FCC, C-Tick, E13, WEEE |
| Vesa Standard Mount | 75 x 75 mm |
| Stand Type | Multi Fun ctional Desktop/Wall mount |
| Colour | Black |
| Packing Dimension | 283 (W) x 295 (H) x 105 (D) mm |
| NET Weight | 1.4 Kgs |
| GROSS Weight | 2.0 Kgs |
POWER
- Power Supply: 12v 1AMP
- Voltage: AC100 – 240V 50 / 60Hz
- Power Consumption: < 12W in “ON”
- Contrast, Brightness, Language, Colour, Rotation up/down & L/R, Input Source (VGA,AV1AV2), Reset
- English, French, German, Spanish, Italian, Russian, Polish and Portuguese
ACCESSORIES
- Power Supply, Remote Control, Multi Functional Bracket Desktop/Wall Mount, User Manual.
